Set the scan slow enough and you can easily monitor how your program’s instructions are responding. You can use this to good effect when trying to debug your program. When the simulation is slowed, so is the PLC scanning.
This is not a component of normal PLCs but is provided with LogixPro so that you may adjust the speed of the simulations to suit your particular computer.

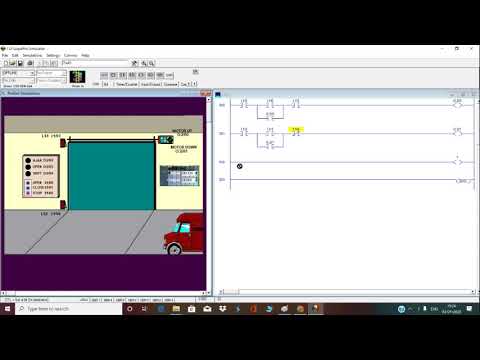

If you take a look at the PLC Panel, you’ll notice an adjustable Speed Control shown in Fig. This will initiate the scanning of your program and the I/O of your chosen simulation. (2) will bring the PLC Panel into view.įrom the PLC Panel, you can download your program to the “PLC” and then place it into the “RUN” mode. Once your program is ready for testing, clicking on the “Toggle Button” of the Edit Panel as shown in Fig. The Edit Panel provides easy access to all the RS Logix instructions and they may be simply dragged and dropped into your program. Edit menu Editing and Downloading in LogixPro.(1) we can see the three major components of the software: The significant advantage of this software is that it is widely available, you can download and install it without any restrictions. The LogixPro simulator is an interactive educational tool, developed to assist students in the acquisition of the programming skills commonly used in the PLC control of process equipment and systems.ĭownload PLC Software: LogixPro Simulator Today and for the next posts, we will learn a group of sharp, precise, and smart programming techniques, by a commonly used programming software LogixPro.
However, preparing ready-made Coding Structures into your programming mindset using different techniques will strengthen your PLC programming ability much more and make the programming easier for you. Introducing PLC programming practices using LogixPro simulator software and downloading procedure in detail.īuilding a programming mindset is not that simple, practicing and executing many programming ideas will help you.
